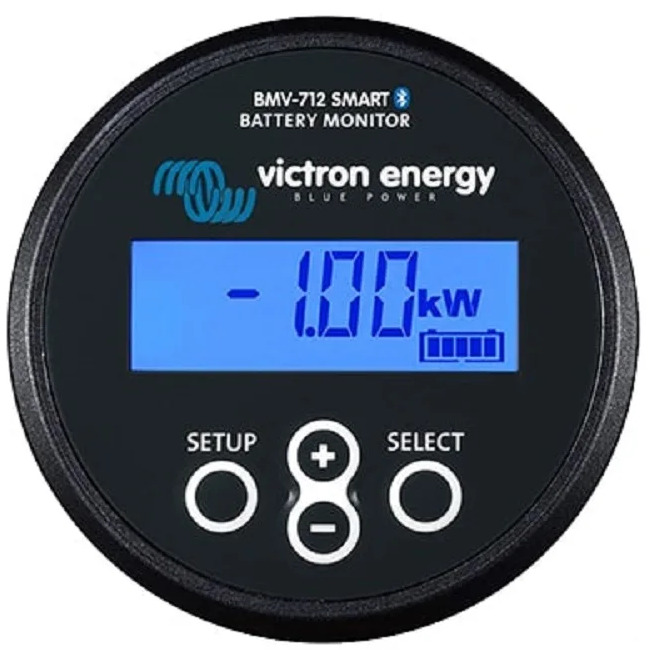

VICTRON battery monitoring device BMV-712 Smart (black)

Key Features

• Built-in Bluetooth for easy monitoring via the VictronConnect app on smartphone or tablet.
• 500A/50mV shunt for high-accuracy current measurement.
• Comprehensive battery monitoring:

1. Voltage
2. Charge/discharge current
3. State of Charge (SOC)
4. Remaining time (Time-to-go)
5. Historical data (cycles, depth of discharge, Ah, Wh, etc.)

• Additional input for monitoring a second battery voltage or connecting a temperature sensor.
• Clear LCD display showing all key parameters.
• Ultra-low power consumption (≤ 0.7mA).
• VE.Direct communication port for integration with other Victron systems.

Technical Specifications

• Operating voltage range: 6.5 – 70V DC
• Maximum current: 500A (with shunt)
• Accuracy:
• Voltage: ±0.3%
• Current: ±0.4%
• Operating temperature: -40°C to +50°C
• Display dimensions: 63mm diameter × 31mm depth
• Battery compatibility: Lead-acid (flooded, AGM, GEL) & Lithium (LiFePO₄).

Package Contents

• BMV-712 Smart display unit
• 500A/50mV shunt with RJ12 cable (10m)
• Battery connection cable with fuse (2m)
• Mounting accessories
