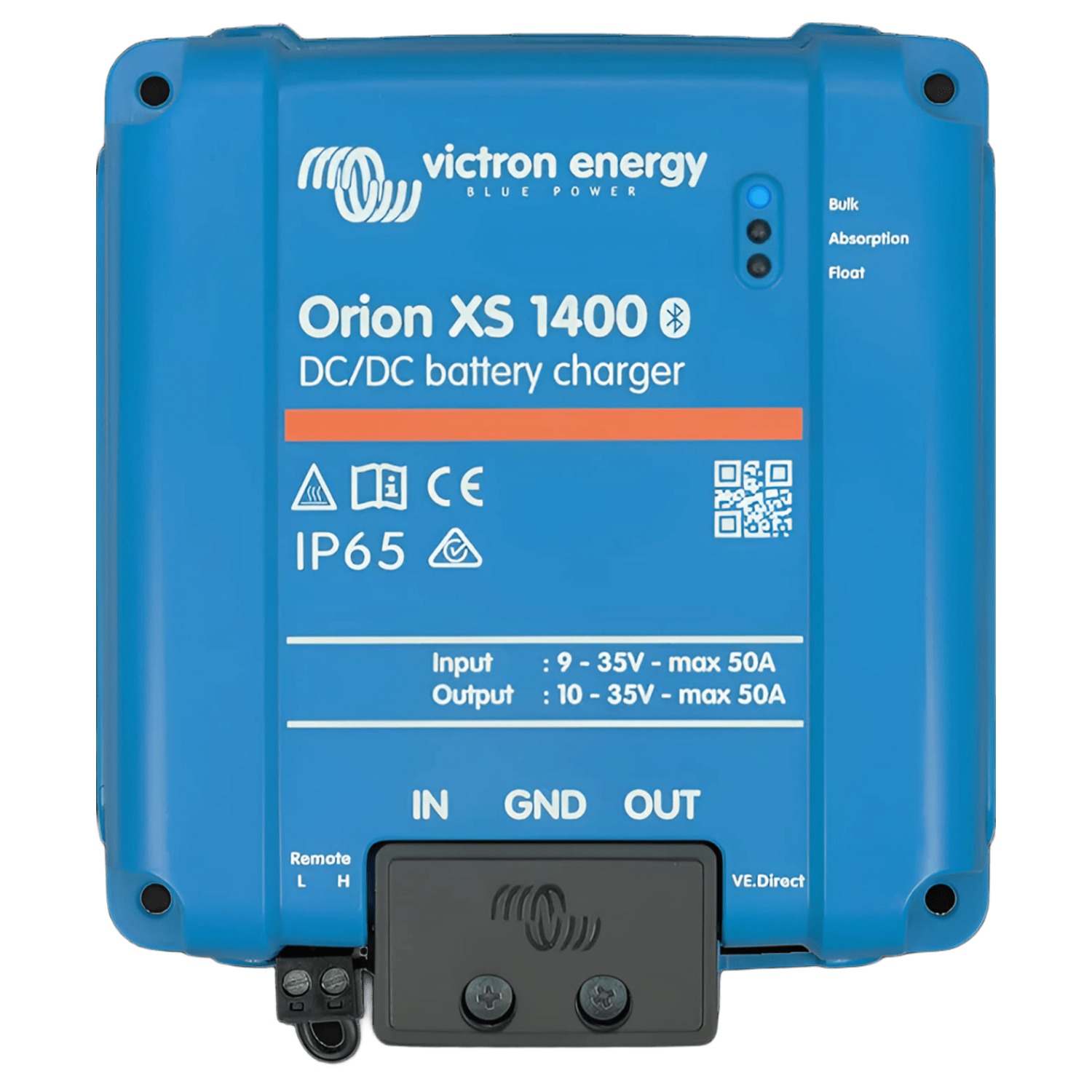

VICTRON Orion XS 1400 DC-DC 12V/24V 50A battery charger

The Victron Orion XS 1400 is a smart DC-DC battery charger that:

• Converts DC to DC to charge a secondary battery from the main one (e.g., from a starter battery to a service battery).
• Works with 12 V or 24 V input and output systems.
• Features adjustable current up to 50 A and can deliver up to 1400 W continuous power.
• Is fanless, durable (IP65, resistant to dust and rain).
• Can also be used as a DC power supply.

Technical Specifications

• Input voltage range: 9–35 V DC
• Adjustable output voltage range: 10–35 V DC
• Output current: 1–50 A (adjustable in 0.1 A steps)
• Maximum short-circuit current: 50 A
• Continuous output power: up to 1400 W (28 V × 50 A)
• Maximum efficiency: 98.5%
• No-load consumption: <100 mA
• Standby consumption: <1.5 mA
• Output ripple: ~10 mV rms
• Output accuracy: ±0.25%
• Operating temperature: -20°C to +60°C
• Power derating above 40°C: 1.5 %/°C
• Humidity: up to 95% non-condensing
• Operating altitude: up to 2000 m
• Protection rating: IP65 (waterproof & dustproof)
• Weight: ~0.520 kg
• Dimensions (HxWxD): 138 × 124 × 53 mm

Additional Features

• Bluetooth Smart – Adjustable and monitorable via VictronConnect app (iOS/Android).
• VE.Direct & VE.Smart Networking – For connection with GX devices, BMV monitors, SmartShunt, etc.
• Adaptive 4-stage charging – Smart charging algorithm that adapts to battery chemistry (LiFePO₄, AGM, Gel, flooded, etc.).
• Engine shutdown detection – Detects when the engine is running without an external sensor and adjusts charging start.
• Protections against – Overcharge, overheating, short-circuit, reverse polarity.
• Safety standards – IEC 62477-1.
