VICTRON Ekrano GX PV system control center

Technical Specifications

• Operating Voltage: 8–70 V DC

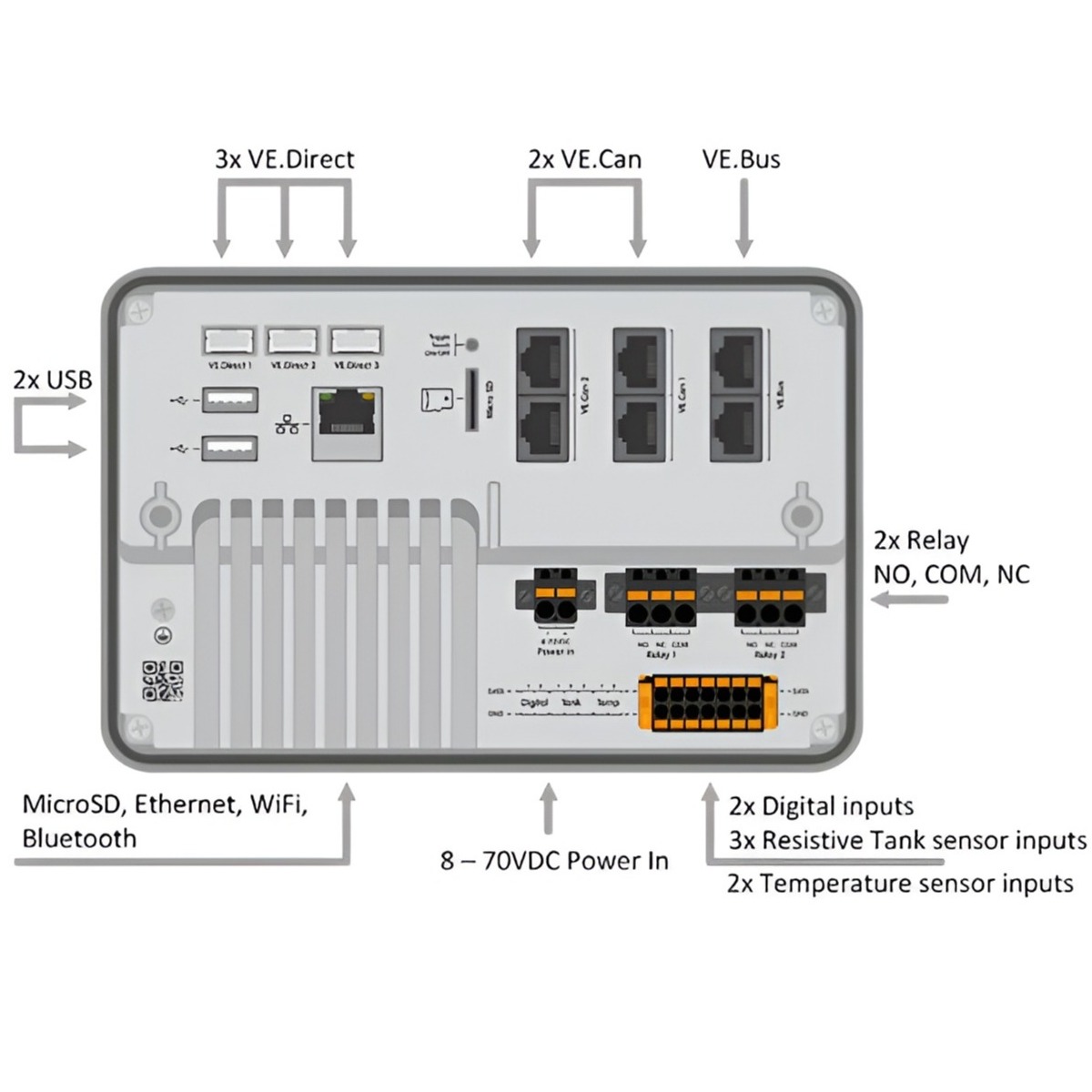

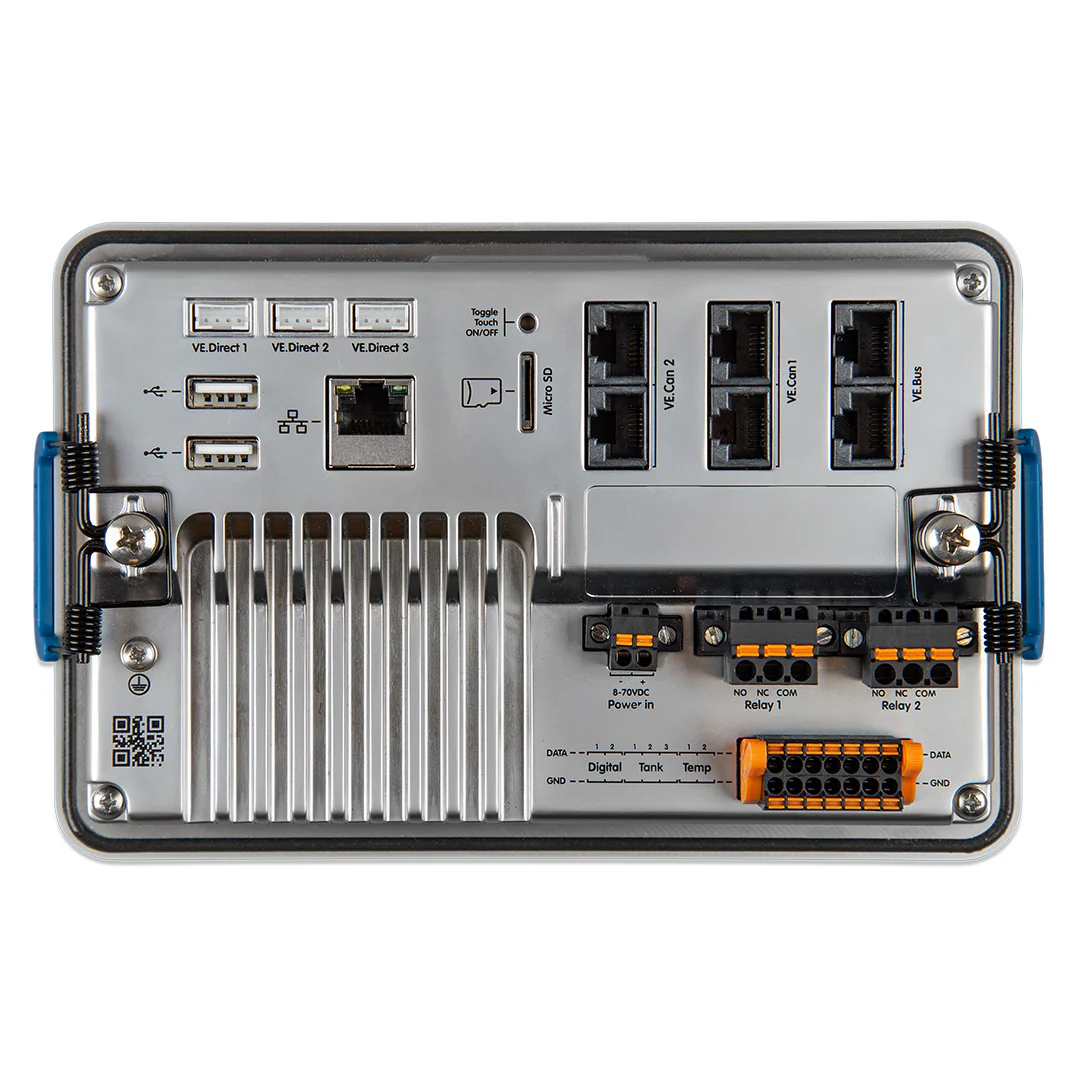

Contacts & Communication Ports

• Relay: 2 × NO/NC (DC up to 30V : 3A, AC up to 125V : 1A)

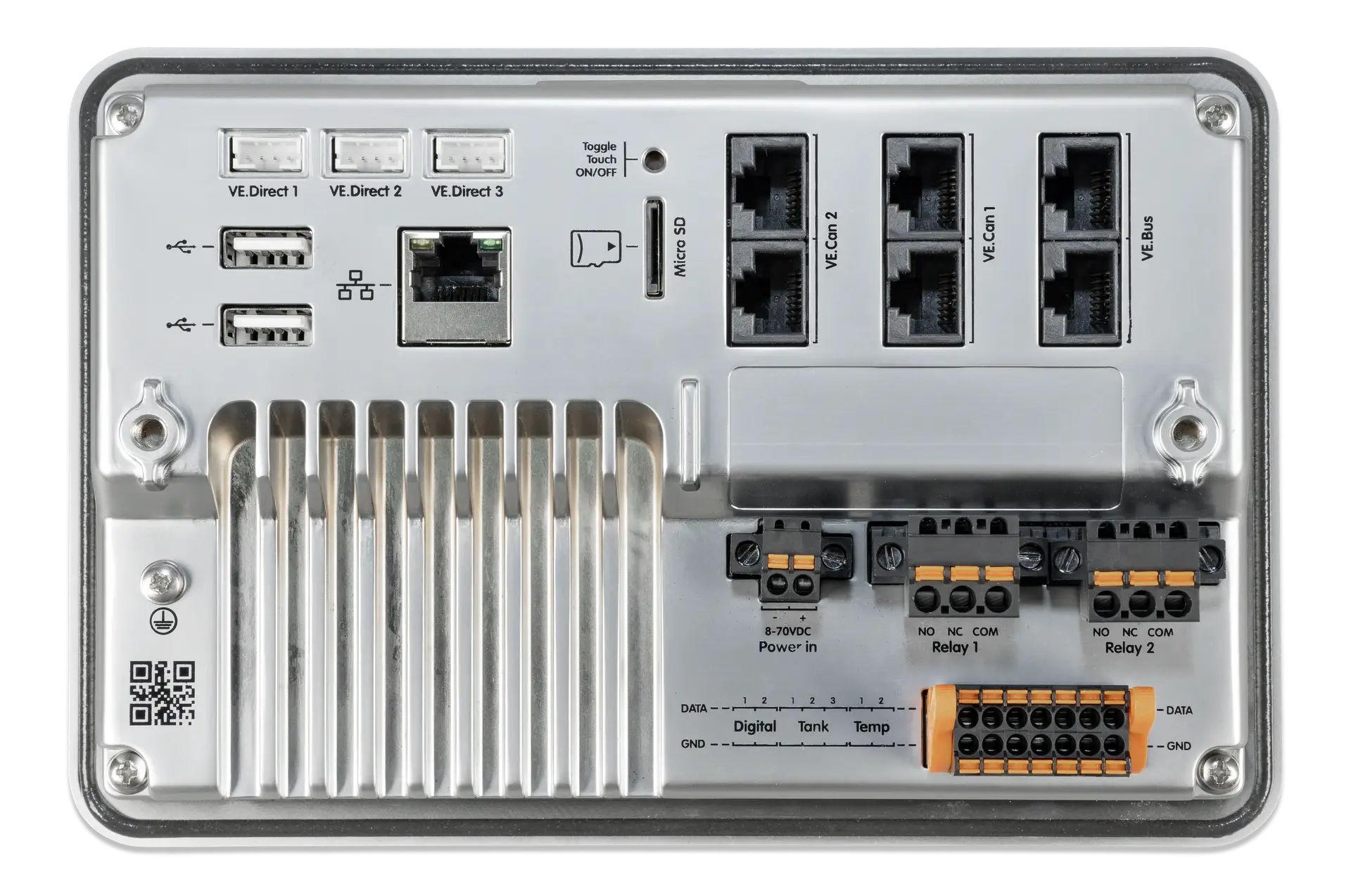

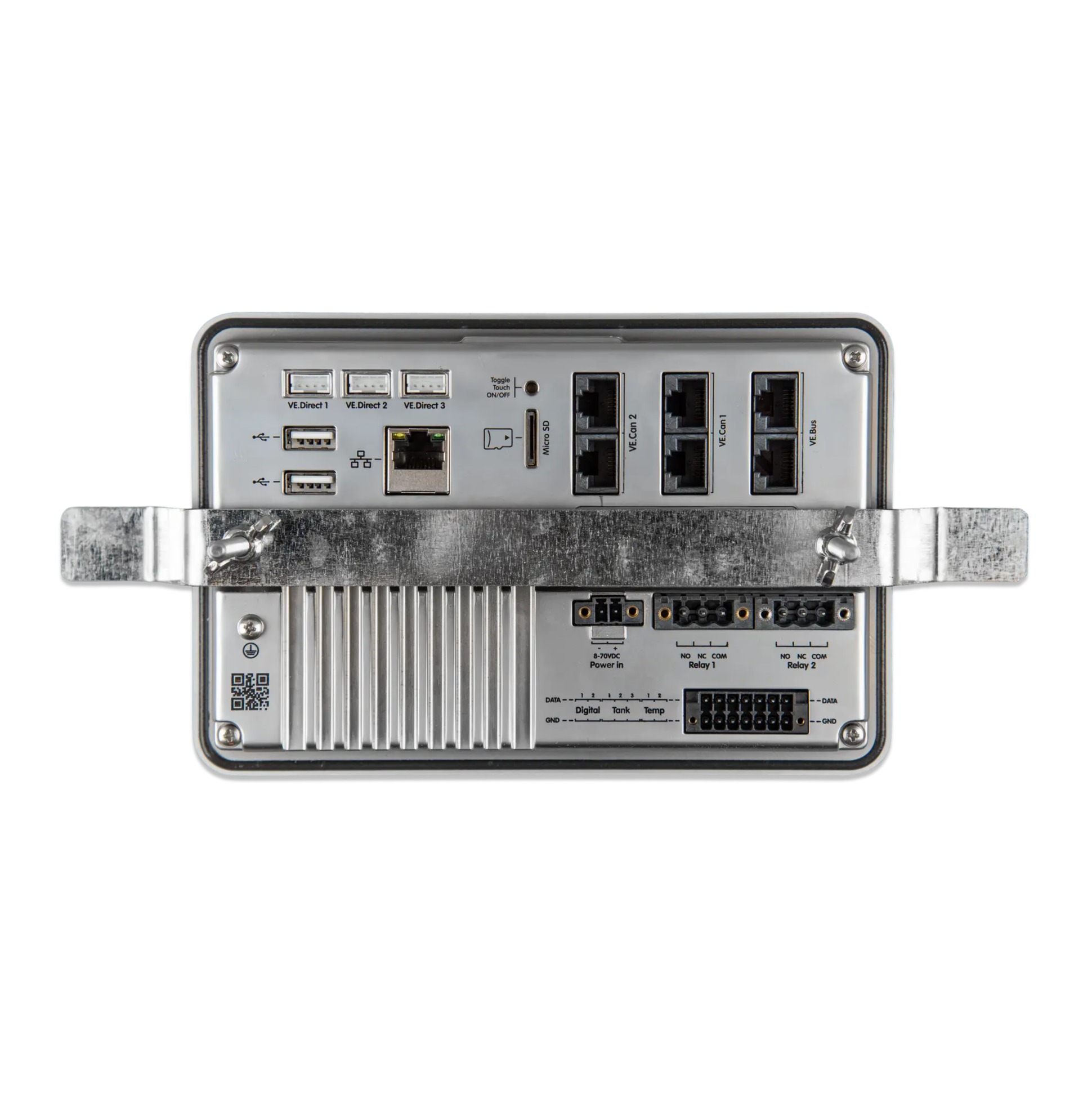

• 3 × VE.Direct (always isolated) – support up to 25 devices in total
• 1 × VE.Bus (with two parallel RJ45)
• 2 × VE.Can (one balanced/isolated, one non-isolated)
• Ethernet
• Wi-Fi (2.4 GHz, range 2.412–2.462 GHz, power ~88.1 mW)
• Bluetooth Smart (2.402–2.480 GHz, power ~5.2 mW)
• 2 × USB-A (total up to 1.5A @ 5V)
• Micro-SD card (SDHC up to 32 GB)

Inputs (I/O)

• Resistive Tank Level: 3 inputs
• Temperature Inputs: 2
• Digital Inputs: 2 (e.g. for waterproofing, pulse measurements, alarms, etc.)

Display & Operation

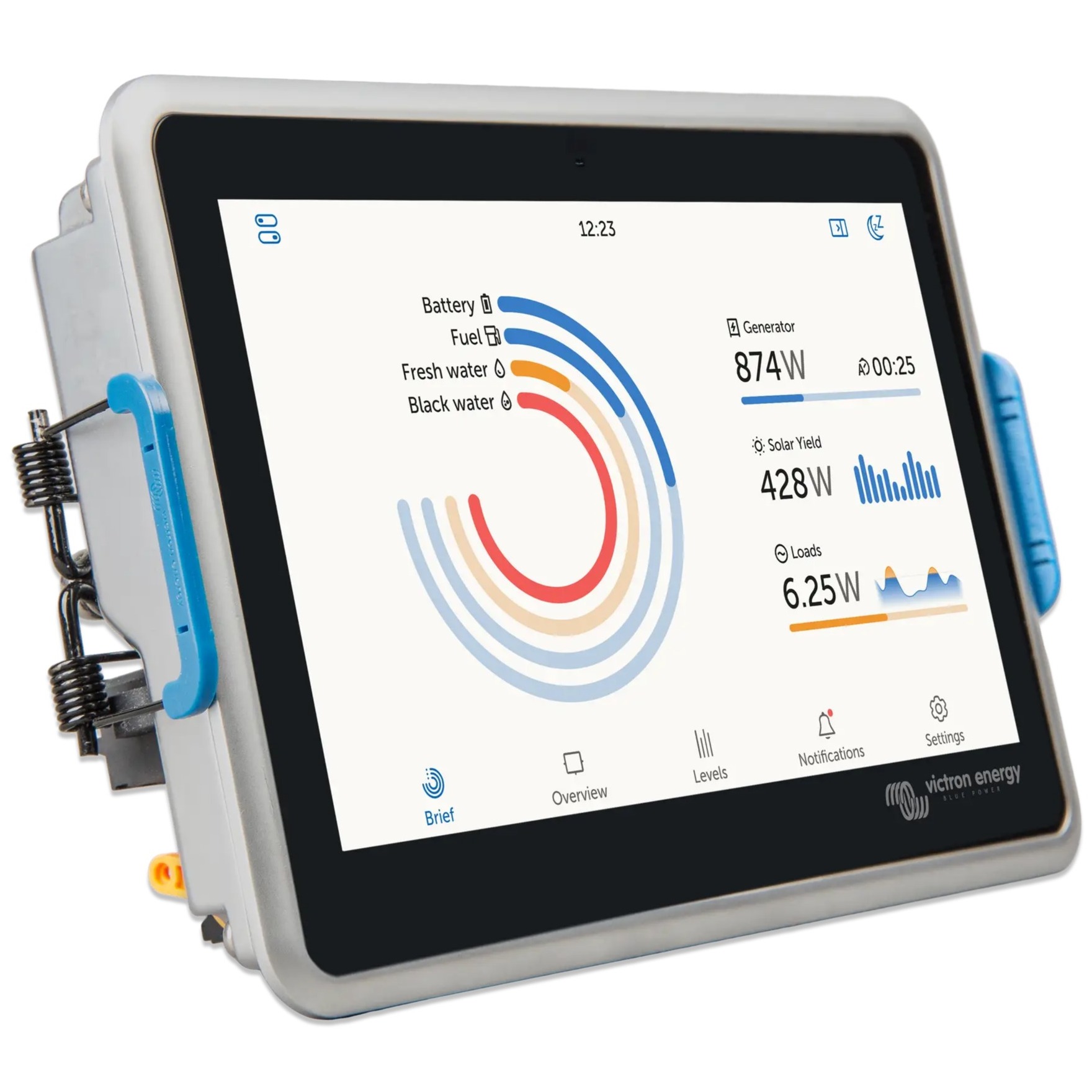

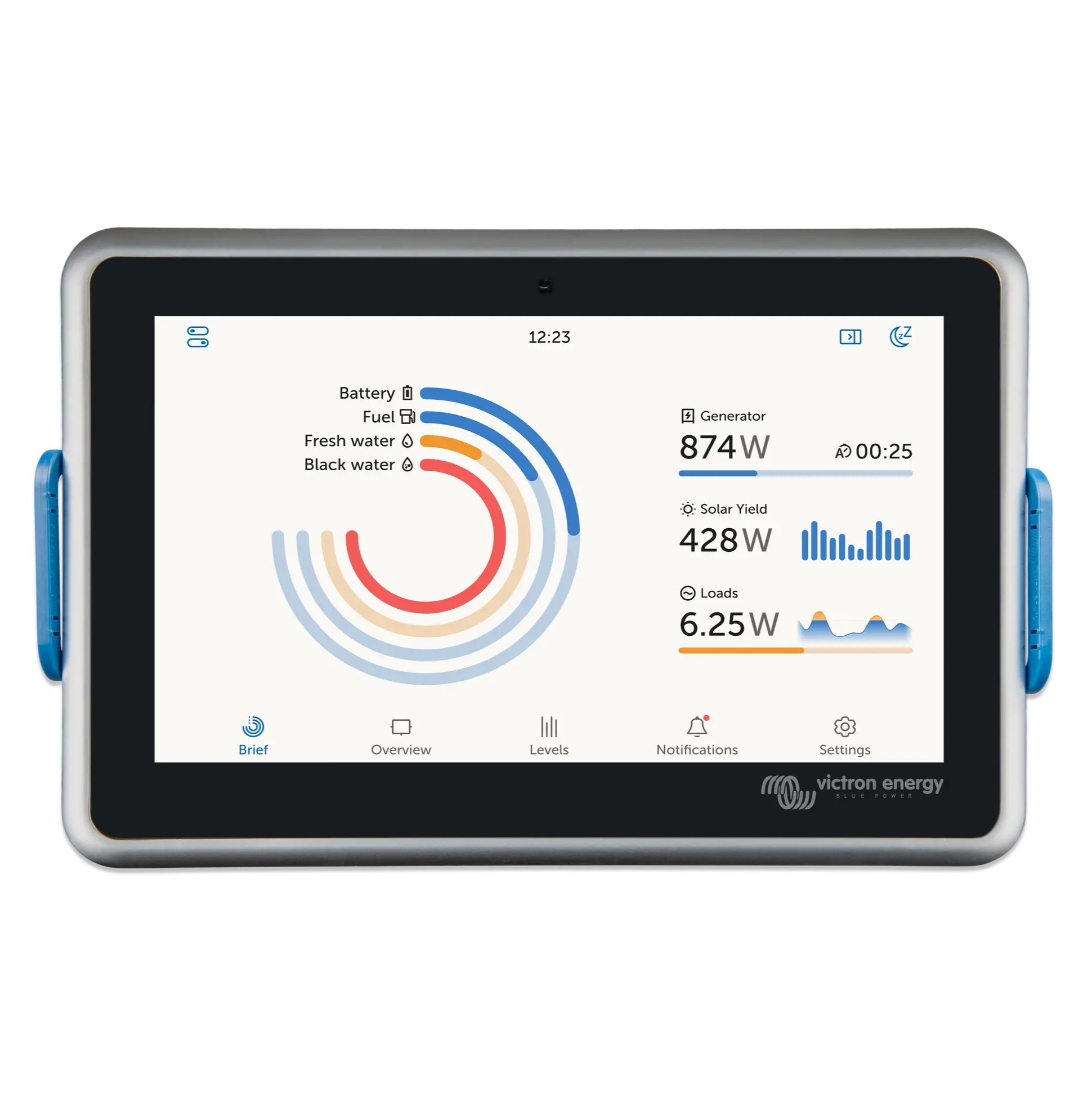

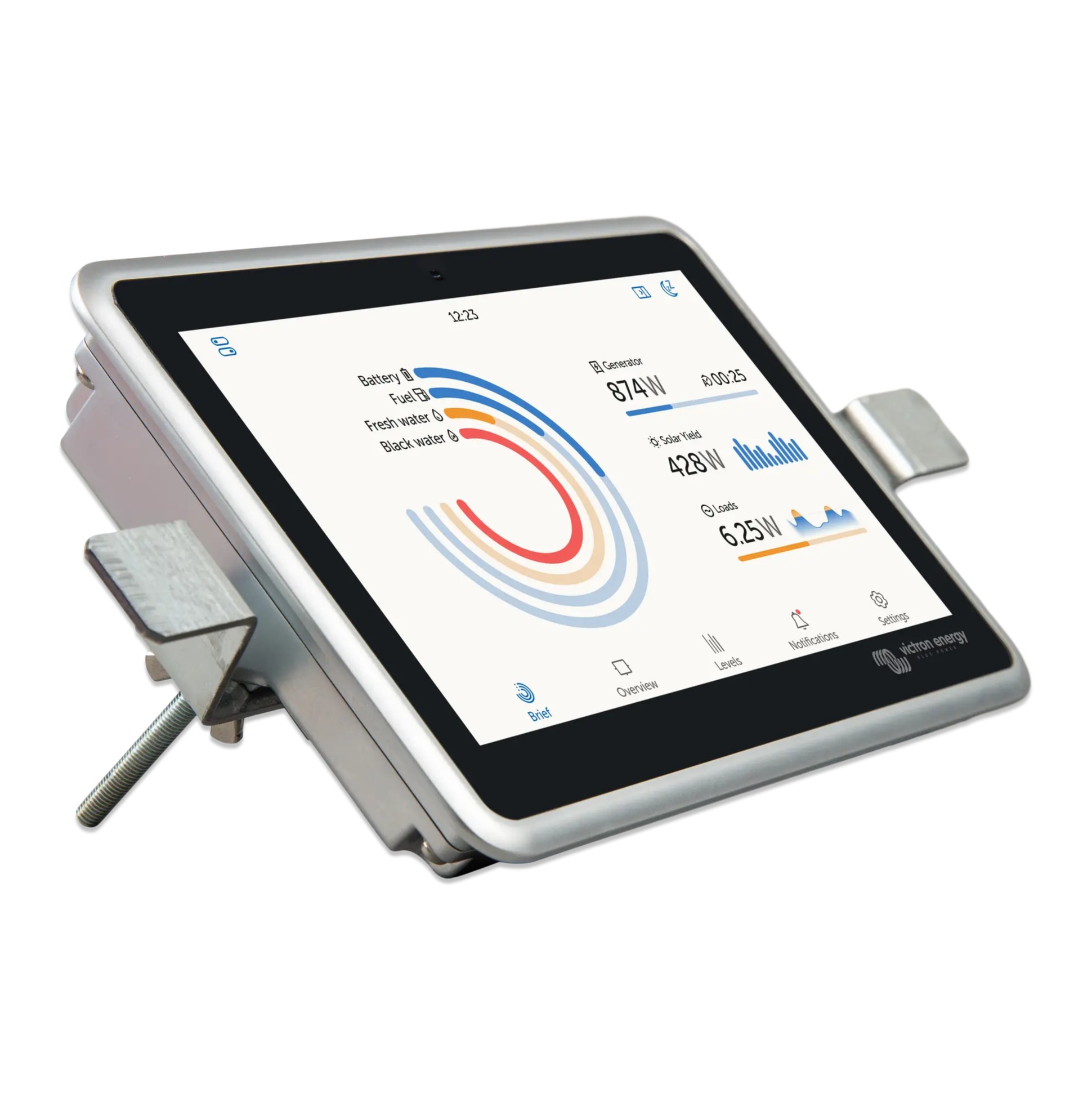

• Display: 7″ touchscreen, 1024 × 600 px resolution, with automatic or manual brightness adjustment via ambient sensor.
• Touchscreen can be disabled via a special button on the back (to prevent unauthorized use).
• The integrated display is waterproof (IP54), when installed with a metal front panel.

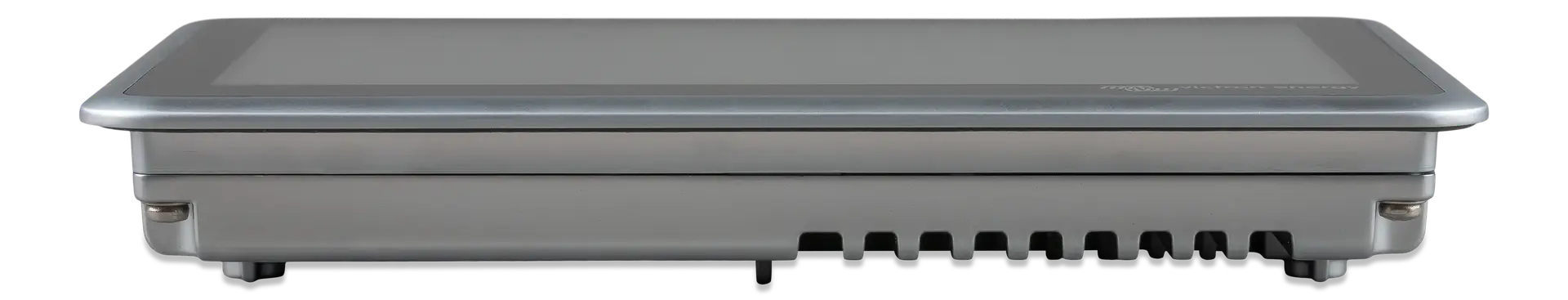

Physical Dimensions & Environment

• Dimensions (W × L × D): 187 × 124 × 29.8 mm without connectors/mounting hardware
• Operating temperature: −20 °C to +50 °C
• Protection:

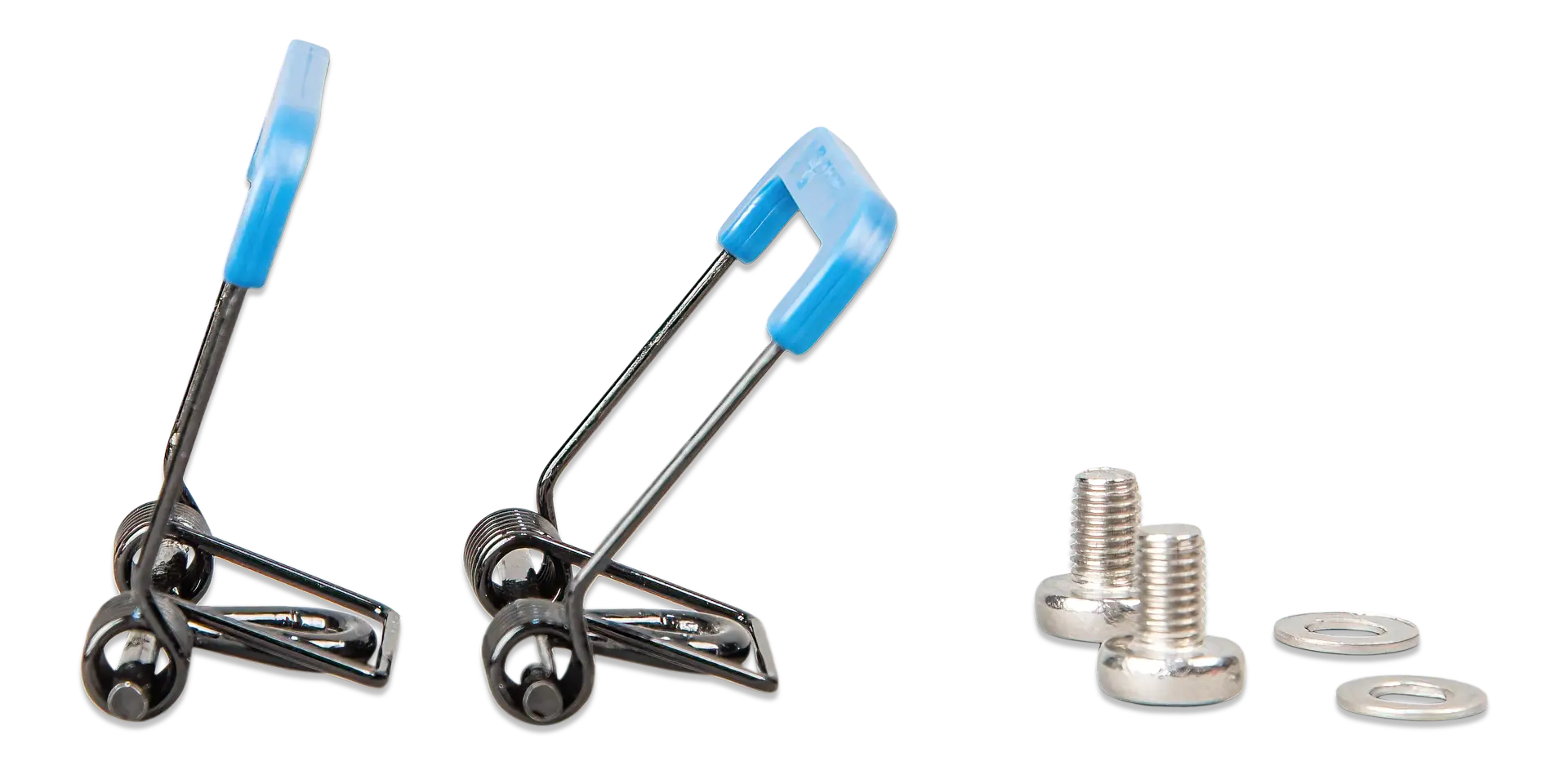

  - Front: IP54 (with metal frame), IP31 (with spring mount)
  - Rear: IP21

Other Features

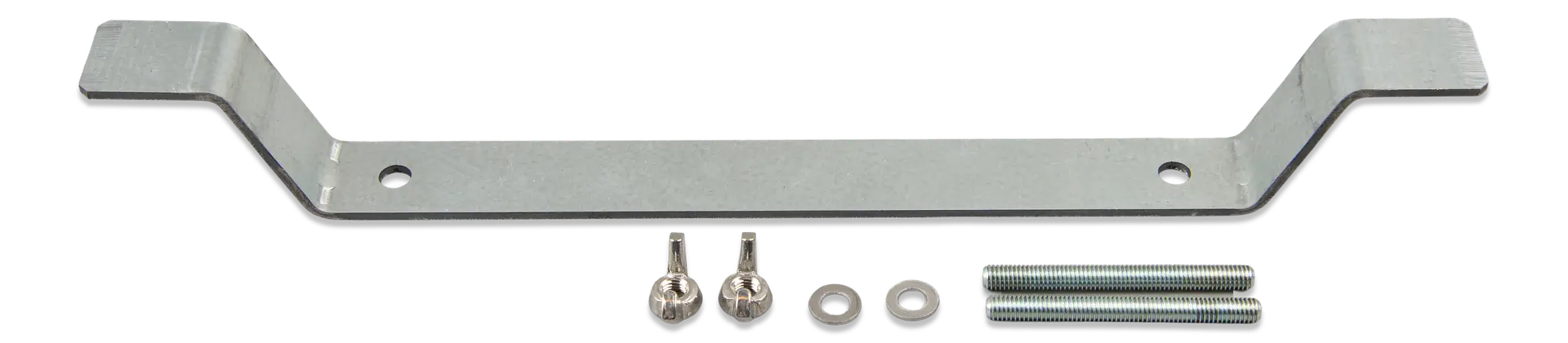

• Panel Connector - Supports flush-panel or blind-hole with supplied accessories
• Buzzer - Yes, built-in for audible alerts
• Software - Features Venus OS v3.0 — fully updated, with beautiful user interface
• Processing Power - Powerful quad-core processor, more powerful than Cerbo GX

• Residential and commercial energy storage systems (ESS).
• Marine and RV applications where flexible monitoring is required.
• Industrial applications and off-grid installations.
