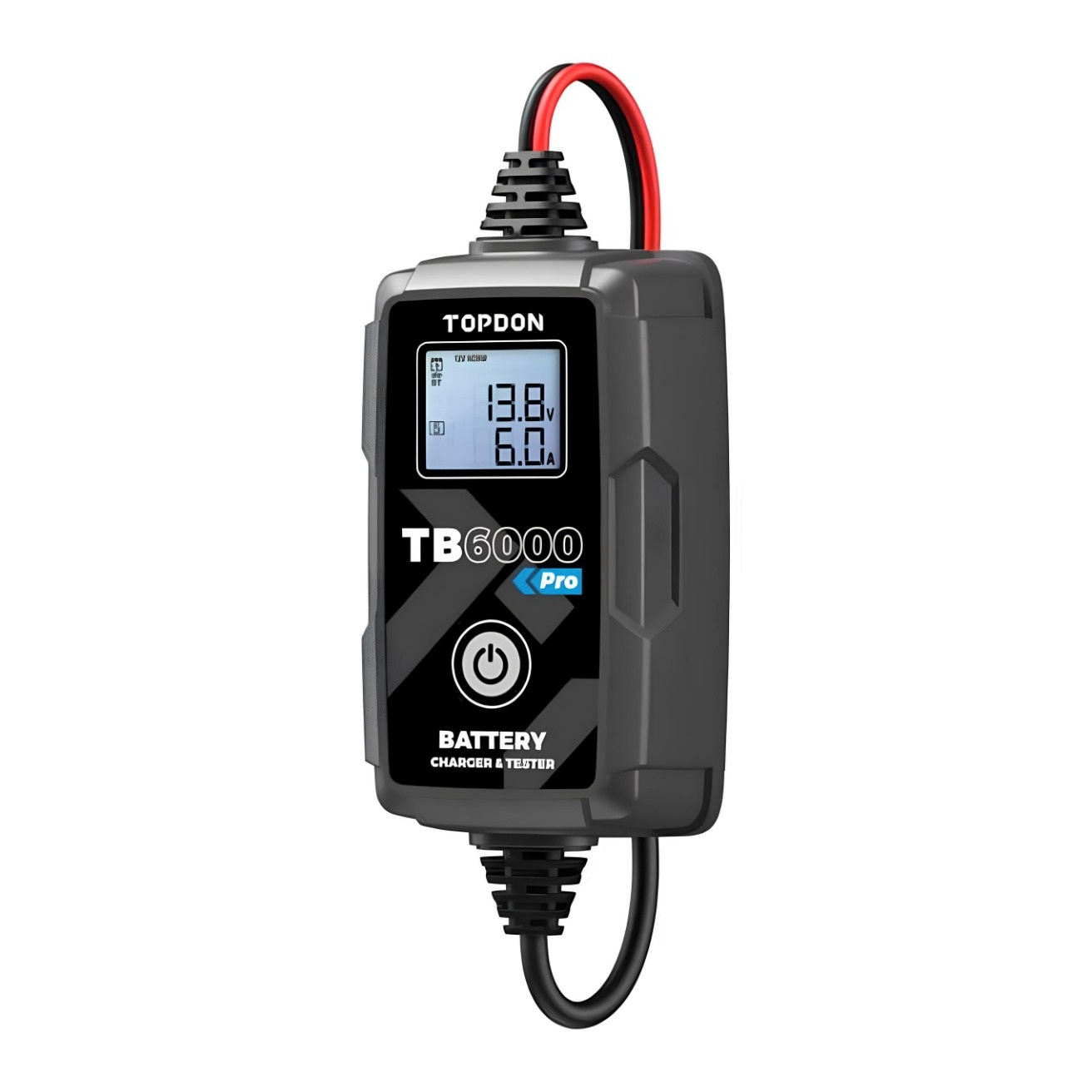

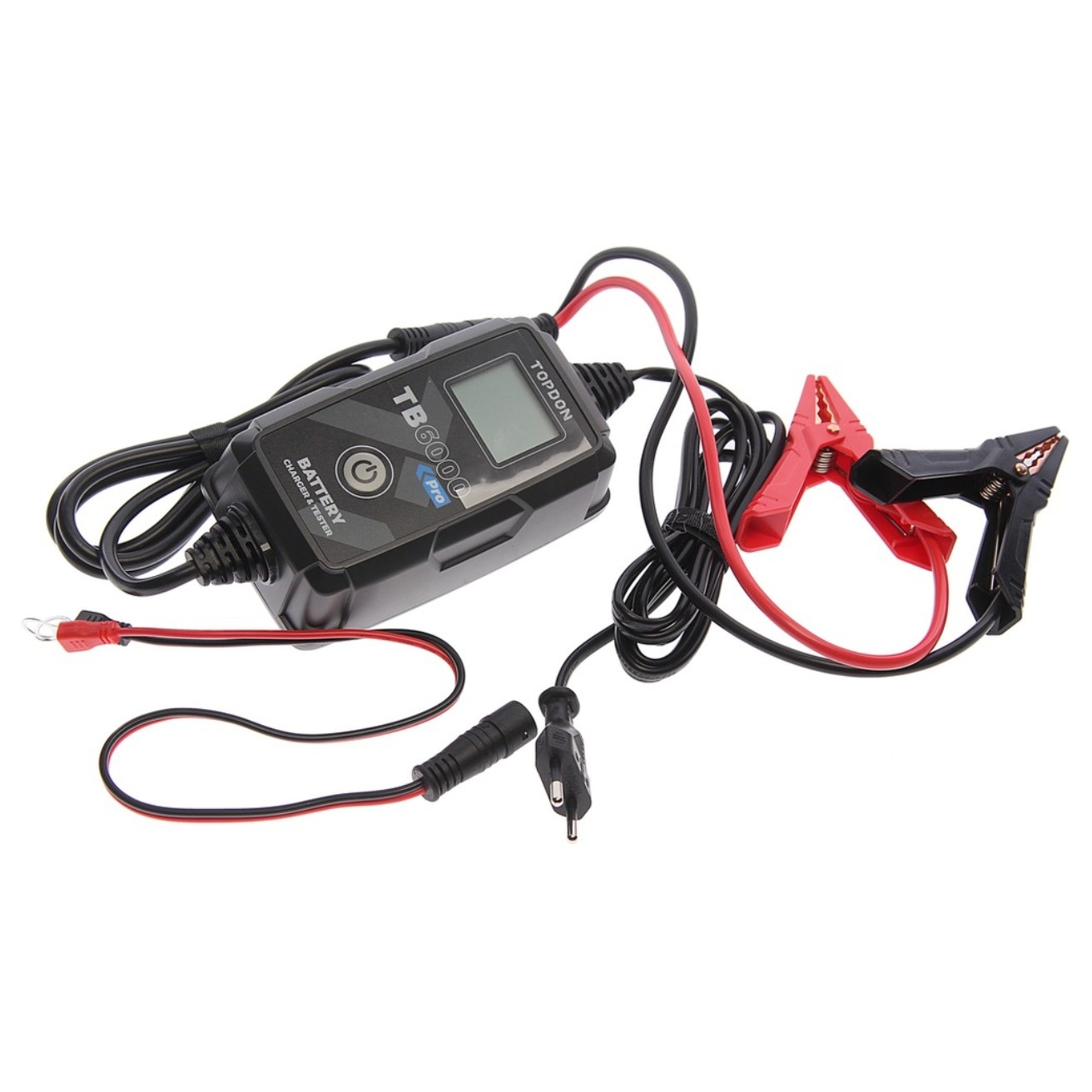

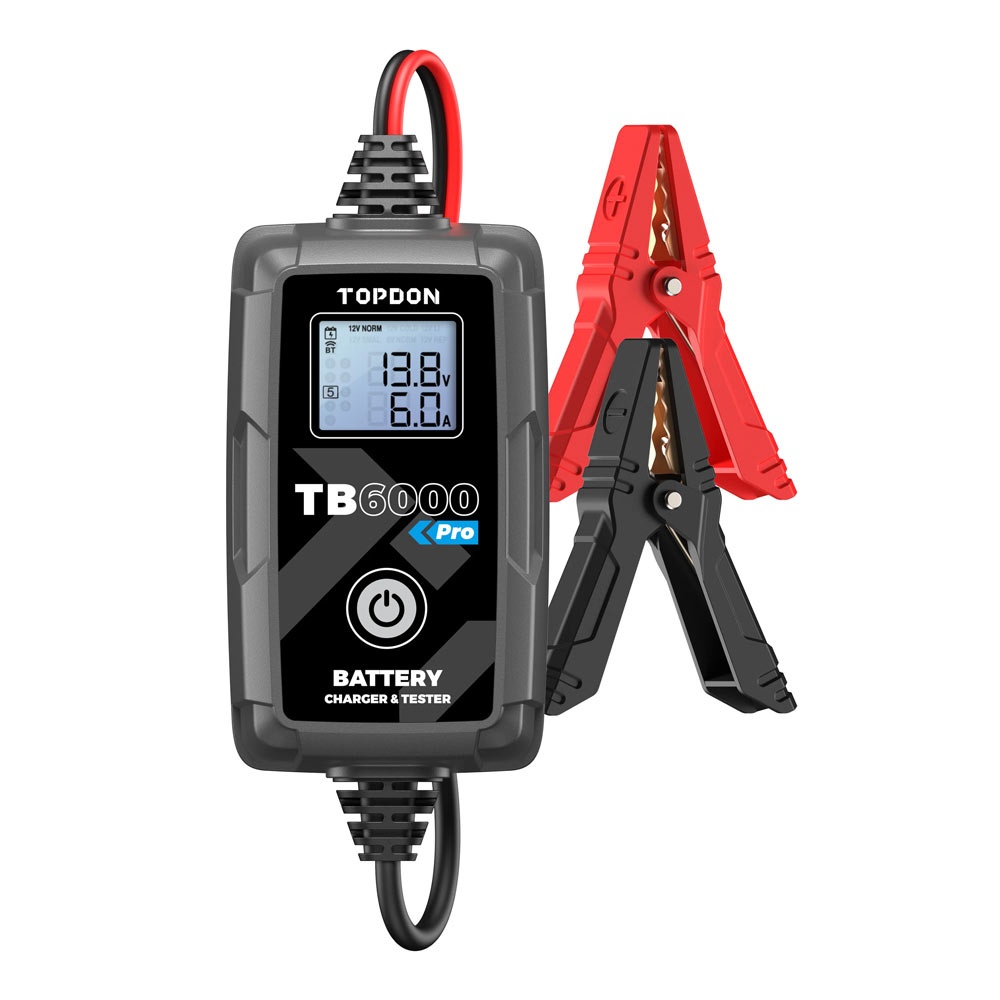

TOPDON TB6000PRO 6V/12V 6A battery Charger and Tester

The TOPDON TB6000PRO is an innovative tool that combines battery charging and diagnostics, eliminating the need to carry multiple devices. Its 9-step smart charging function makes it extremely user-friendly while ensuring protection against overcharging and short circuits. With smartphone connectivity via an app, you can monitor charging status and access professional settings, such as voltage and current adjustments.

Advanced Smart Charging

The TB6000PRO offers a cutting-edge smart charging function, displaying a before-and-after report to compare battery data. Before starting the charging process, the TB6000PRO automatically performs a pre-check and generates a detailed report. By analyzing values such as CCA, internal resistance, voltage and battery health, the report clearly indicates how much the battery has improved after charging. These reports can also be saved as images for future reference.

9-Step Charging Process

The patented 9-step smart charging technology ensures an optimized and comprehensive battery charging process:

1. Diagnosis
2. Desulfation
3. Pre-Charge
4. Initial Charge
5. Bulk Charge
6. Absorption
7. Analysis
8. Reconditioning
9. Maintenance

Battery Restoration & Extended Lifespan

Using pulse-width modulation (PWM), the TB6000PRO breaks down sulfation deposits in aged batteries, effectively restoring their resistance and extending their lifespan. The built-in before-and-after battery check allows users to clearly see the improvement in resistance after charging.

Reliable Charging Solution

TOPDON continuously optimizes its charging algorithm based on real-world battery data collected via the app (with user consent). This data-driven approach allows continuous improvement of charging efficiency and accuracy.

Expanded Battery Testing Capabilities

The TB6000PRO can accurately detect key battery parameters, such as State of Charge (SOC) and State of Health (SOH), using Kelvin measurement technology. It supports detailed charging and cranking tests for 12V lead-acid batteries, providing in-depth battery diagnostics via the smartphone app.

Durable & Safe Design

Built to withstand high temperatures and humid environments, the TB6000PRO features IP65 protection, making it waterproof and dust-resistant. It also includes safety features such as reverse polarity protection, spark prevention, short-circuit protection, overvoltage and overheating protection.

Technical Specifications

• Input Voltage: 100-240[V]
• Output Voltage: 6-16[V]
• Output Current: 1-6[A]
• Charging Modes: 12V/6A, 12V/3A, 12V/1A, 6V/3A
• Battery Capacity Support: 5-240[Ah]
• Supported Battery Types: Flooded and sealed types (EFB, AGM, MF, SMF, WET), GEL and Li
• Cable Length (AC): 2m
• Cable Length (DC Positive/Negative): 1.8m
• Operating Temperature (°C): -10 to +40
• Storage Temperature (°C): -20 to +75
• Protection Level: IP65
• Dimensions (mm): 130 x 80 x 50
• Weight (kg): 1.05
• Warranty (years): 3
