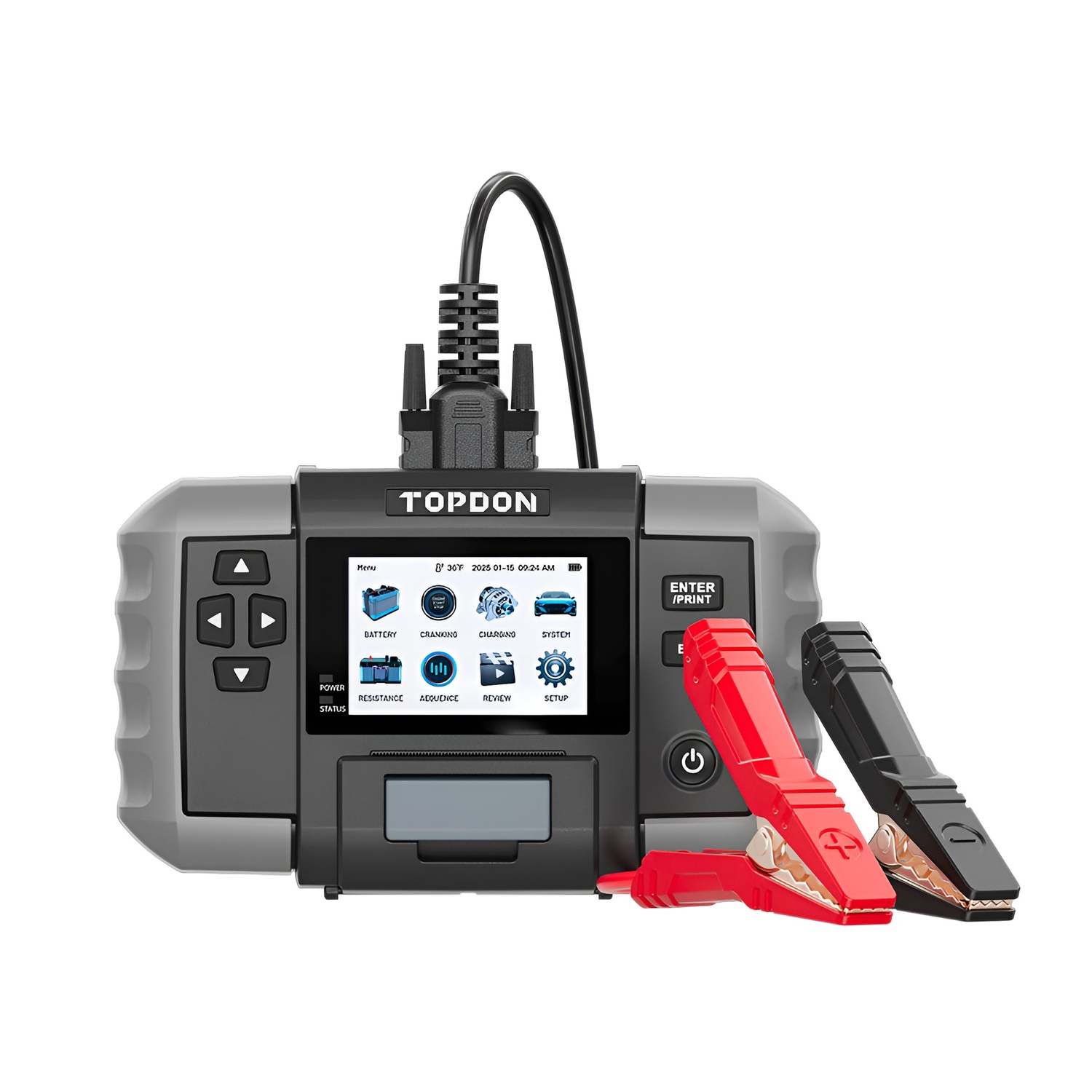

TOPDON BT600 Plus 6V/12V/24V Battery & Resistance Analyzer with Built-in Printer

The TOPDON BT600 Plus represents the next generation of battery diagnostic tools. Built for professionals who need more than a basic tester, it combines full lead-acid battery diagnostics with independent internal resistance testing — ideal for workshops, distributors, and battery manufacturers.

Standalone Operation with Built-In Battery

Powered by a 5200mAh built-in battery, the BT600 Plus operates cordlessly for over 14 hours, without needing to stay connected to an external power source.

It can even detect voltage down to 2V, allowing it to read deeply discharged batteries that other tools simply cannot power on.

Independent Internal Resistance Testing

Beyond standard battery, cranking, and charging tests, the BT600 Plus features a dedicated resistance measurement function (0–200Ω) with customizable PASS/WARN/FAILED thresholds.

It supports not only lead-acid batteries, but also lithium, alkaline, and carbon-zinc chemistries.

Batch Testing for Multiple Batteries

The Sequence Test function allows testing of up to 500 batteries per group, with support for up to 10 groups — a powerful tool for distributors and warehouses needing to quickly evaluate large volumes of batteries.

10-Record Test History

Unlike simpler tools, the BT600 Plus stores the last 10 results for each test type, allowing you to compare readings and track battery condition over time.

Instant Printing

The built-in thermal printer produces test reports on demand, letting you hand customers documentation on the spot.

Safety & Design

The BT600 Plus includes reverse polarity protection and ships with two sets of test clamps (large & small) for flexibility across different battery terminal sizes.

Technical Specifications

• Screen: 3.5" color display
• Voltage measurement range: 0.000V to ±100V
• Resistance measurement range: 0.000mΩ to 200Ω
• Built-in battery capacity: 5200mAh
• Cable length: 1.8m (long) / 1.0m (short)
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 70°C
• Product dimensions: 21.8 × 13.4 × 5.7 cm
• Packaging dimensions: 34.3 × 24.9 × 7.5 cm
• Weight: 642 g
• Protection: Reverse polarity protection

Box contents:

• BT600 Plus
• 2 sets of test cables with clamps
• USB-A to USB-C cable
• 4-in-1 wall charger
• 5 rolls of thermal printer paper
• carrying bag
• user manual
• quick user guide
