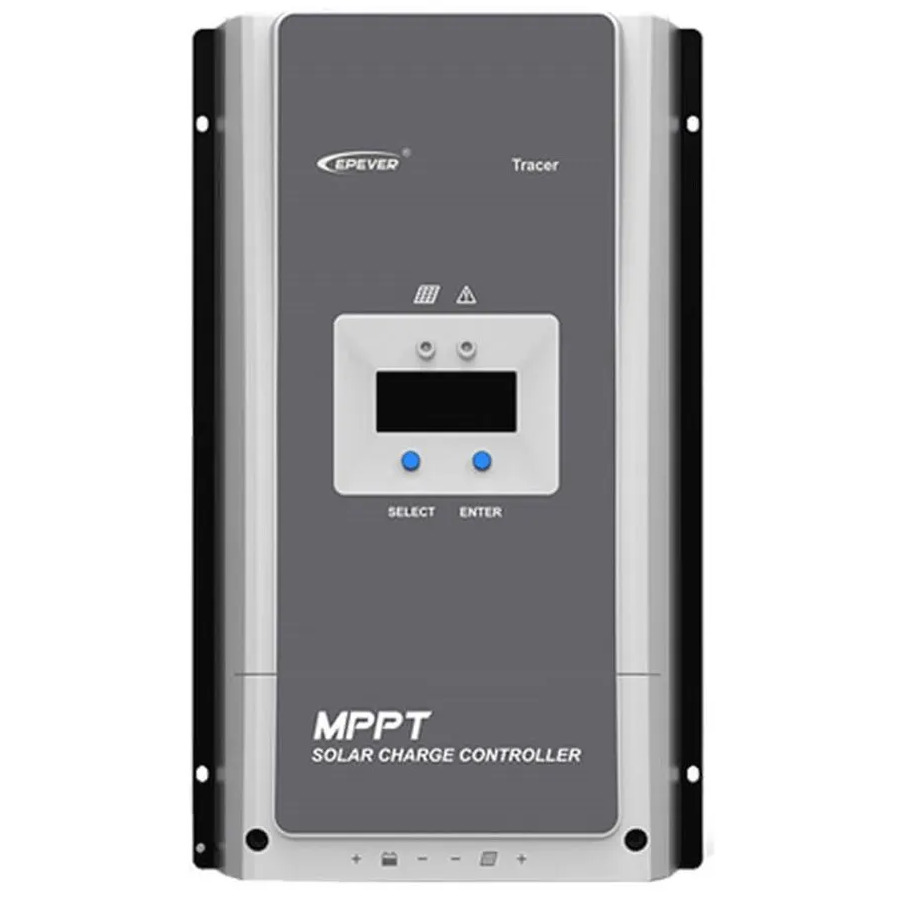

EPEVER Tracer 10420AN MPPT Solar Charge Controller

The TRACER MPPT charge controllers from EPEVER are suitable for all polycrystalline and monocrystalline solar panels. The built-in display allows you to view all system indicators, and thanks to the maximum power point tracking algorithm of the PV array, it increases your system’s performance by up to 30%.

Features

• CE certification (LVD EN/IEC62109, EMC EN61000-6-1/3).
• Advanced MPPT technology with ultra-fast tracking and efficiency above 99.5%.
• Specialized control algorithm to minimize losses and charging time.
• Wide MPP operating voltage range.
• Automatic charging current and power control system.
• Compatible with Sealed, Gel, Flooded and Lithium battery types.
• Real-time energy logging and statistical function.
• Automatic charging power reduction in case of battery overheating.
• Parallel connection of up to 8 units for system expansion.
• RS485 port 5VDC/200mA with MODBUS communication protocol for connection to smartphone, tablet and PC.

Electronic protections against:

• PV short circuit.
• Deep battery discharge.
• Overcharging.
• Load overcurrent.
• Load short circuit.
• PV reverse polarity.
• Wrong battery polarity connection.
