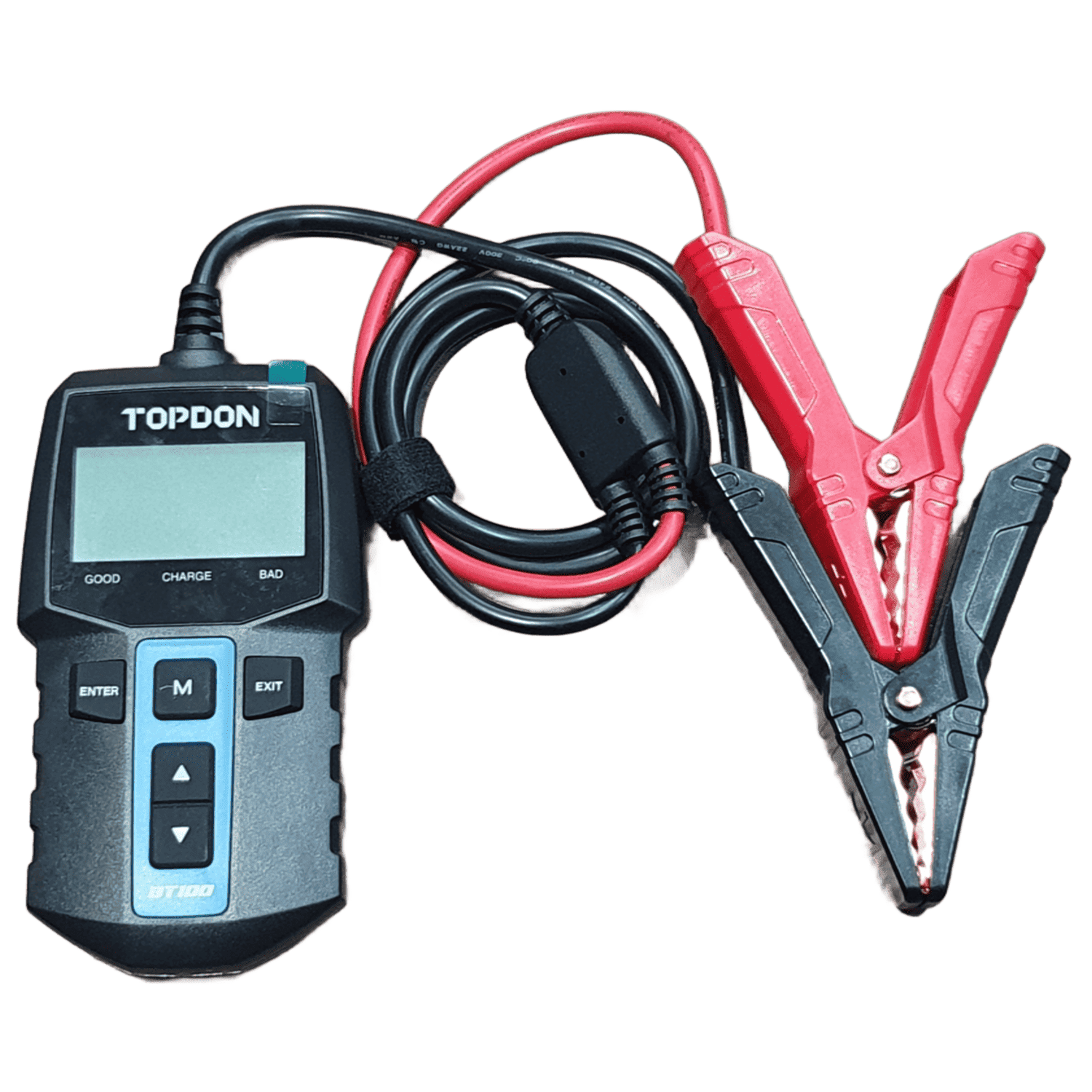

Digital battery analyzer TOPDON BT100 12V

TOPDON BT100 combines all professional diagnostic tests in a small and easy-to-use device. It performs battery, cranking, charging and voltage ripple tests, offering much more information than a simple voltage meter. It is ideal for both professionals and individuals who want to identify problems with confidence.

The BT100 measures:

• State of Health (SOH)
• State of Charge (SOC)
• Battery Internal Resistance

giving a comprehensive picture of its true condition.

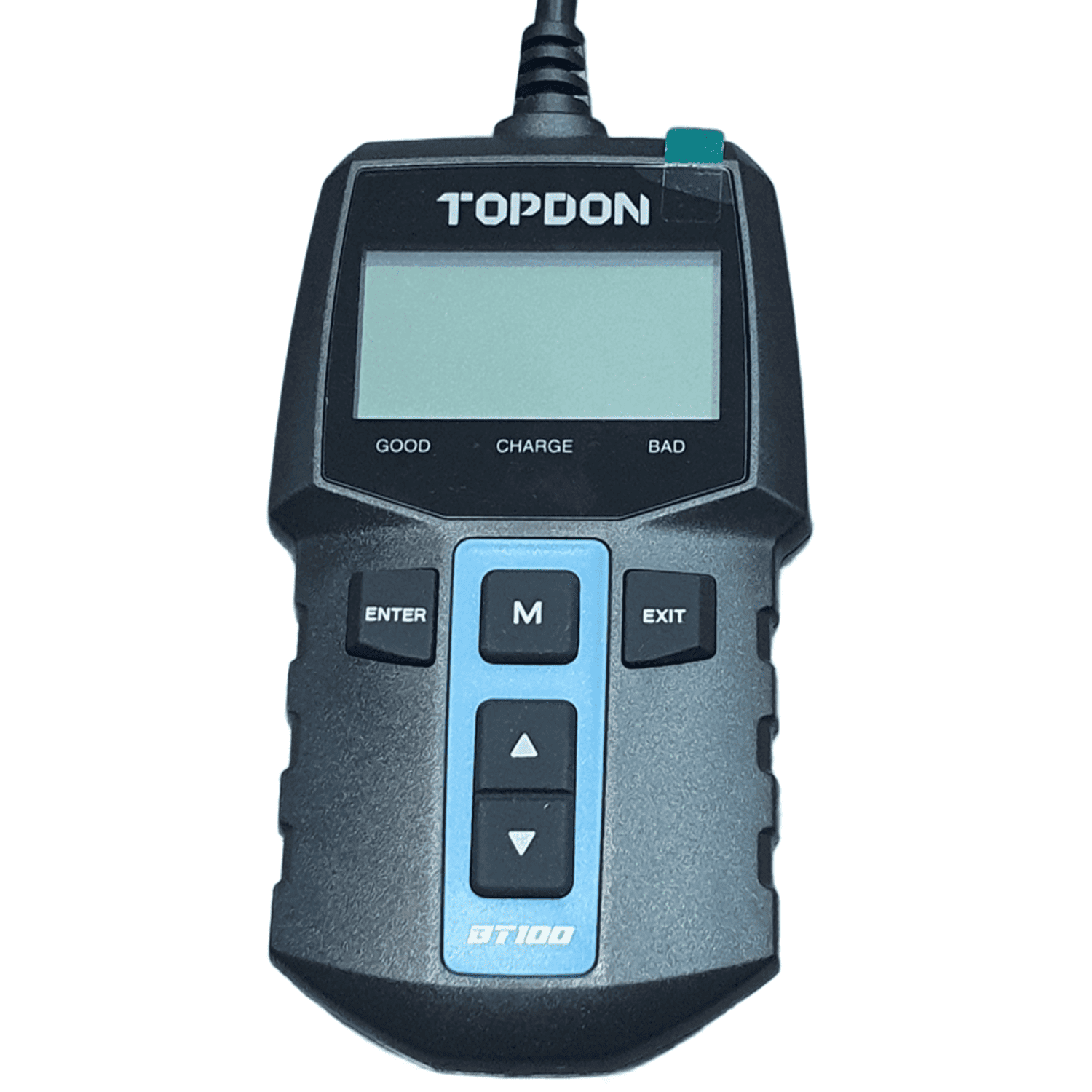

The results are clearly displayed on the screen, while three LEDs immediately indicate the status:

• Good
• Charging
• Bad

The cranking test measures the voltage at cranking and the cranking time, so you will know if the battery is performing properly under load or showing signs of weakness.

The BT100 helps you understand whether the problem comes from the battery or the alternator. Measures ripple and voltage in load and no-load conditions for fast and reliable charging system diagnostics.

Supports all technologies:

• flooded type
• AGM flat plate
• AGM spiral
• GEL
• EFB

With a test range of 100–2000 [A], it covers applications from small cars to large commercial vehicles.

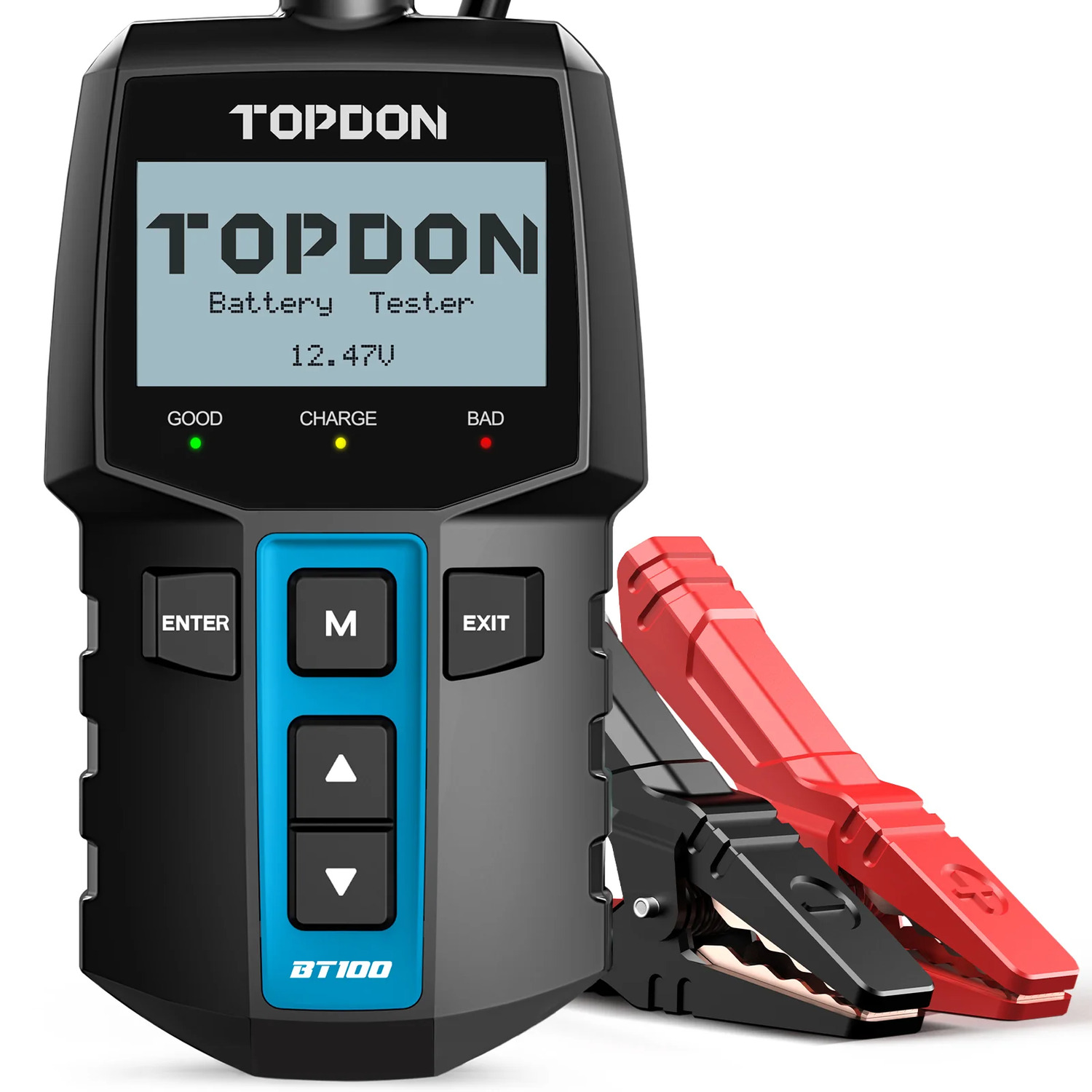

The 2" LCD display with backlight offers a clear and easy-to-read display of results in any lighting condition – from bright sunlight to low light.

Technical characteristics

• Display: LCD 128x64
• Operating temperature: -20°C - +65°C
• Storage temperature: -20°C - +70°C
• Dimensions: 136.5 x 75.5 x 22.5 [mm]
• Weight: 260 g.
