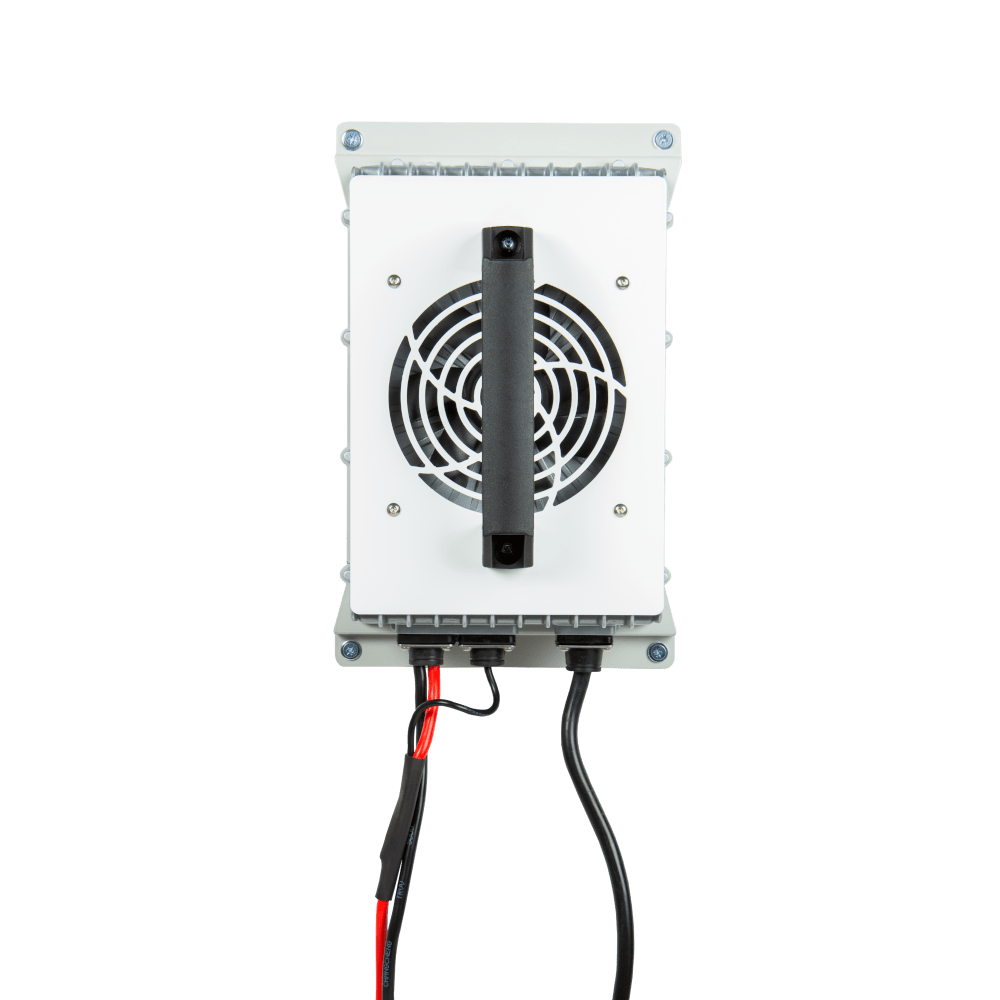

Battery charger TCE NEOS Series N4850 48V 50A HF IP67

NEOS Series Industrial Battery Chargers

The NEOS Series is a compact, robust and highly reliable battery charger designed for on-board installation in industrial and electric vehicles. Built for immediate use and simple operation, it combines advanced charging technology with extreme durability for demanding environments.
Thanks to its IP66/IP67 protection and Extreme Waterproof design, NEOS chargers are engineered to operate in harsh conditions, including shock, vibration, dust, humidity and temporary water immersion. This makes them ideal for industrial equipment operating indoors or outdoors.
The NEOS Series offers exceptional charging power and high efficiency, delivering superior performance compared to conventional battery chargers.

High Efficiency Technology

The NEOS Series uses resonant high-frequency technology, delivering high reliability and precise control of the charging process.
The system constantly monitors the charging cycle to optimize battery performance and extend battery life.

This advanced technology allows the charger to reach:

• Efficiency up to 94%
• Power Factor ? 0.99
• Low noise operation ? 45 dB

Advanced Protection and Durability

Key protection features include:

• IP66 / IP67 protection class.
• Full protection against dust, sand and small particles.
• Temporary water immersion protection.
• Shock and vibration resistance.
• Durable metal enclosure that also functions as a heat sink.

The cooling fan is protected by a dedicated safety grid, preventing damage and ensuring long operating life.

Charge Status Indicator

The charger includes an integrated LED indicator, maintaining the device's protection level while providing clear visual information about the battery state of charge.

LED colors indicate:

• Red: Battery charge from 0% to 79%
• Yellow: Battery charge from 80% to 99%
• Green: Battery fully charged (100%)

The charger operates reliably in extreme temperatures from -30°C to +65°C.

Optional Accessories

Additional accessories can be integrated to expand the charger’s functionality:

• CAN Bus interface cable
• Safety lock system (clean contact)
• Remote charge indicator
• Multiple mounting support options

Safety Systems

The NEOS Series includes multiple safety protections to ensure safe operation and long equipment life:

• Protection against overheating.
• Protection against reverse polarity.
• Protection against short circuits.
• Automatic stop when charging is completed.
• Self-diagnostic system in case of faults.
• Active Power Factor Correction (PFC).
• Soft-start function at the beginning of charging.

About T.C.E.

Since 1960, T.C.E. Srl has been developing innovative battery charging solutions designed to maximize battery lifespan and performance.
Through continuous research and advanced engineering, T.C.E. chargers maintain precise control of the charging cycle, ensuring reliable performance and long-term energy efficiency.

Ideal for:

• lifting machines
• forklifts
• golf carts
